Rear derailleur...which screw to adjust?

[Gunk]

How much more movement is there on the rear mech? Doesn’t look that tight.



[Mazz]

How much more movement is there on the rear mech? Doesn’t look that tight.

I'm not sure how to answer that.
By hand, I can push the mech quite far back. Trying to push it forward there is only a little movement because the mech clashes with the largest cog.

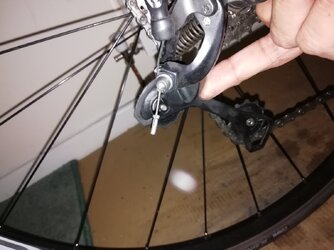

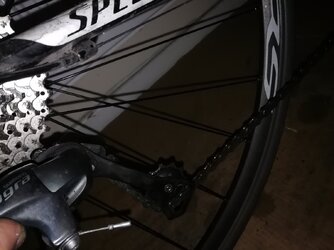

I also tried to put an S-bend in the chain using finger and thumb (see pics).



[Ming the Merciless]

Looks like there’s enough to take the links out. Push the bottom derailleur wheel forwards as far as it can go. Take a photo if you can.

Here is a photo from the manual for my bike on what it should look like in big big and through the derailleur as a setup method. The bottom derailleur wheel should always be able to move forward a little from this position. In other words that should not be the limit of ho far forward it can move and the teeth still engage the chain.



[raleighnut]

Chain's deffo a tad too long



[Mazz]

Looks like there’s enough to take the links out. Push the bottom derailleur wheel forwards as far as it can go. Take a photo if you can.

Here is a photo from the manual for my bike on what it should look like in big big and through the derailleur as a setup method. The bottom derailleur wheel should always be able to move forward a little from this position. In other words that should not be the limit of ho far forward it can move and the teeth still engage the chain.

View attachment 744205

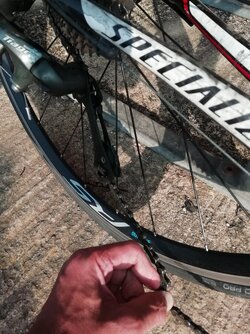

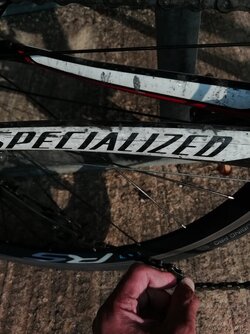

I pushed the bottom jockey wheel by finger. I could push it until it could go no further, because it clashed with the chainstay...



[roubaixtuesday]

If I were you I'd take a link out.

I'd hazard a guess that taking two out might be even better.

But it's up to you now, nobody here can give you any more advice.



[Alex321]

I pushed the bottom jockey wheel by finger. I could push it until it could go no further, because it clashed with the chainstay...
View attachment 744207

In that case, it is definitely too long. At least one link pair, possibly two.



[Ajax Bay]

Remove one one inch link: no more. Then you'll find cage points at about 4 o'clock. And in small/small given that the wrap requirement of your set up is within the RD-4700's spec, the return section of the chain should be clear of the bit round the tension pulley wheel. But as said before, it doesn't matter if it isn't. Any noise is the nudge to shift to the large ring and to try a bit harder to avoid small/small.



[fransky]

There is never a need to go on those two, it puts to much bend in the chain for one thing.

Yes that’s true



[Mazz]

UPDATE: I removed 1 linked pair and the problem's gone now. Thanks 👍



[Gunk]

UPDATE: I removed 1 linked pair and the problems gone now. Thanks 👍

Glad you sorted it, you can give it a good clean now 🤣



[rydabent]

You should always have enough chain that can go over the big bid sprockets. A long cage derailer is more forgiving too.



[Profpointy]

One handy hint, albeit not an answer to the
question, is to replace the adjuster screws with stainless allen cap screws. The original ones seem to be made of a metallic form of cheese and the cross-head screws are likely JIS rather than Phillips so will not fit the screwdriver on your multi-tool and you'll likely not even have a JIS screwdriver unless you seek one out specially
