iWoc button holder replacement

[iraform]

This is my first post here and I'm hoping I can get some help from those smarter about bikes than me.

Having a problem replacing the button holder for the top tube controller for my Mahle X35 bike motor (Cannondale SuperSix EVO Neo). It should be an easy fix, but I can't seem to separate the button holder from the button/controller. I saw a YouTube video that showed someone simply twisting it off, but mine is stuck and I'm worried I'm going to break it - something I'm very good at. In the video, it appears he turns the button holder to the right to twist it off, but here in the US you almost always turn to the left to loosen. I don't want to crank on it and end up tightening it even more rather than loosening it. Does anyone have experience with this?



[CXRAndy]

You need to post some photos explaining which parts won't come apart



[iraform]

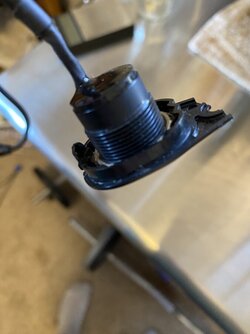

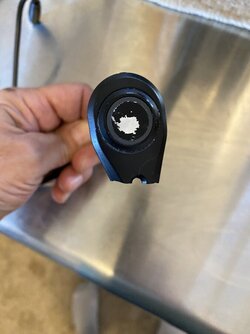

Here are photos of the piece I'm talking about. I used some penetrating oil, but it's still stuck. I'm thinking I may need to break the button holder to get it off.



[iraform]

You need to post some photos explaining which parts won't come apart

Thanks. Just posted photos. I thought I was not allowed to post them until I had a certain number of posts on this board.



[CXRAndy]

It looks threaded into the broken top plate.

If it's super tight and won't undo.

Id use either a Dremel or small junior hack saw. Carefully cut a slot through the top mount plate. This will release the tightness



[iraform]

That's a good idea. Hoping not to have to do surgery, but I don't see a choice. Thanks for the idea!



[ecancela]

Hi
Gonna dig up this post
I am having the exact same problem...
Where you able to separate the button from the cover whithout breaking anything?

Cheers



[Brandane]

Hi
Gonna dig up this post
I am having the exact same problem...
Where you able to separate the button from the cover whithout breaking anything?

Cheers

Even once you get the button separated from the holder, you can't get the button through the holder to properly separate them. You need to thread the holder down to the end of the wire. Don't ask me how to do that; I gave up and bodged the cracked button holder!
