Feeehub removal

[Jimmy Welch]

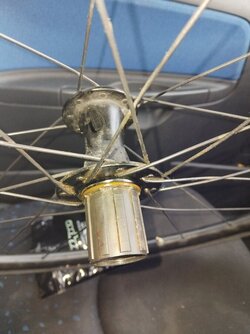

Trying to service a mates freehub anyone know how to get this one off , it's got cartridge bearings but no idea on make I've got the axel and and the bearing dust cover etc out



[Marchrider]

10mm allen key ?



[Jimmy Welch]

10mm allen key ?

Tried that the holes massive 20 mm would get it



[fossyant]

Pull it, should pop off.



[Jimmy Welch]

10mm allen key ?

My biggest hex is 10mm do you think something bigger will do it ?



[Jimmy Welch]

Pull it, should pop off.

My hope does that but this won't shift



[Marchrider]

the allen key goes all the way into the centre of the wheel



[Ming the Merciless]

Tell your mate, it’s time for a new bike



[fossyant]

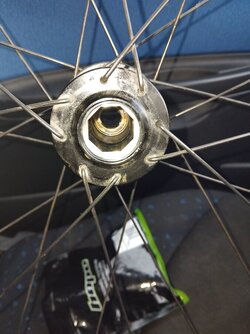

Other option is you need a 11mm or 12mm hex from the non drive side (i.e. stick the hex key in from the other side), but, what's the axel size ?

What make is the hub, any numbers printed on it ?



[chriswoody]

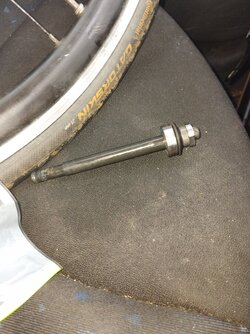

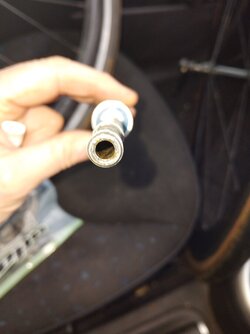

Looks like a 12mm thru axle in the middle? in which case it could well be a 15mm hex key you need, I've the same on my Mountain bike hub.

It is a nightmare trying to work all this out, there seems to be so many different standards and fixtures and most hubs are unmarked or re-branded and trying to find information out is really hard.



[fossyant]

Wow, even that big !!



[Jimmy Welch]

Other option is you need a 11mm or 12mm hex from the non drive side (i.e. stick the hex key in from the other side), but, what's the axel size ?

What make is the hub, any numbers printed on it ?

No no markings , there was Ultegra 11s cassette and derailleur on it but the wheels and hubs are anonymous
